Understanding Integrated Circuits: A Beginner's Guide with a Hands-on Project

Introduction

In the intricate world of electronics, Integrated Circuits (ICs) are the keystones that have revolutionized how we interact with technology. These tiny chips are the brains behind everything from your smartphone to the microwave in your kitchen. This guide aims to demystify the concept of Integrated Circuits for beginners and invite you to apply your knowledge through a practical, beginner-friendly project.

What are Integrated Circuits?

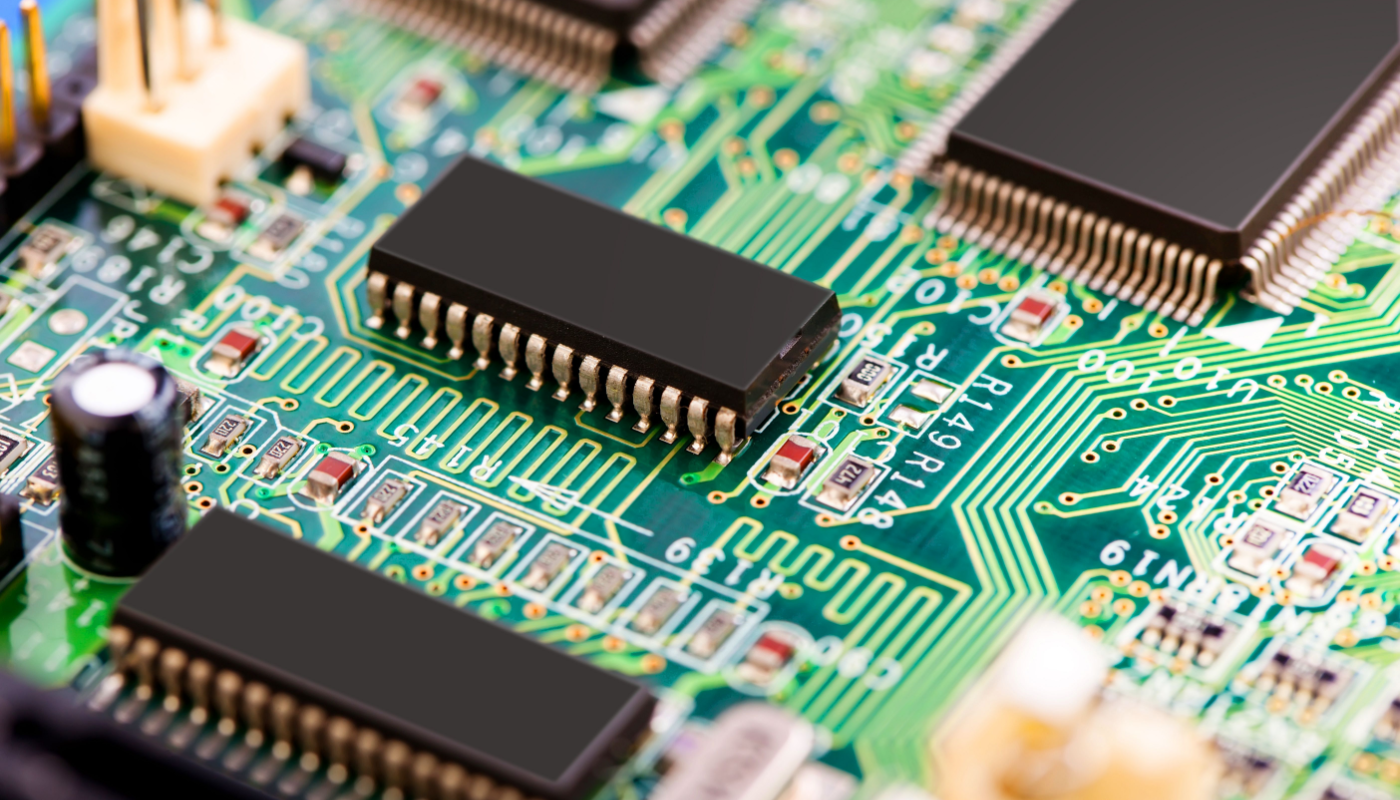

Integrated Circuits, or ICs, are compact electronic devices that combine numerous components like resistors, capacitors, and transistors onto a single chip, usually made of silicon. This innovation has led to the miniaturization and efficiency of electronic devices, propelling us into the digital age.

The Evolution of Integrated Circuits

From the first small-scale integration circuits of the 1950s to today's complex ICs that can hold billions of transistors, the evolution of ICs has been driven by advancements in technology, famously summarized by Moore's Law. This law predicts that the number of components on an IC will double approximately every two years, a trend that has held true for decades.

Types and Applications

ICs are categorized into analog, digital, and mixed-signal, with applications ranging from computing and consumer electronics to automotive systems and medical devices. Their versatility and efficiency have made ICs indispensable in the modern world.

How Integrated Circuits are Made

The manufacturing of ICs is a precise and complex process, involving techniques like photolithography and doping, performed in cleanroom environments. This process ensures the creation of highly efficient and reliable chips.

Beginner Project: A Simple LED Flasher Circuit

Now, let's apply what we've learned about ICs with a simple project: building a LED flasher circuit using the 555 Timer IC. This project is perfect for beginners and requires only a few components, all of which can be found at your local electronics store or RadioShack.

What You'll Need:

• 555 Timer IC
• LEDs
• Resistors: 1kΩ (R1) and 10kΩ (R2)
• 100µF capacitor (C1)
• Breadboard
• Jumper wires
• 9V battery with clip

Step-by-Step Guide:

1. Set Up the 555 Timer IC on the Breadboard: Place the 555 Timer IC on the breadboard. Ensure that the notch or dot on the IC is oriented correctly to identify the pin layout accurately.

2. Ground and Power the IC: Connect pin 1 of the 555 Timer to the negative (ground) rail of your breadboard and pin 8 to the positive rail to provide power to the IC.

3. Connect the Resistors and Capacitor:

   • Connect R1 (1kΩ) between pin 7 and the positive rail.
   • Place R2 (10kΩ) between pin 7 and pin 2.
   • Attach C1 (100µF) with the negative (shorter) leg to pin 1 (ground) and the positive (longer) leg to pin 2.

4. Configure the 555 Timer for Astable Operation:

   • Connect pin 6 to pin 2. This setup creates the astable mode, where the circuit oscillates on and off.
   • Join pin 4 to the positive rail to prevent accidental reset of the timer.

5. Attach the LEDs:

   • Connect the anode (longer leg) of the first LED to pin 3 (the 555's output).
   • Use a jumper wire to connect the cathode (shorter leg) of the first LED to the ground rail.
   • Optionally, for a dual-flash effect, you can connect the second LED in reverse parallel with the first, meaning the anode of the second LED goes to ground, and the cathode connects to pin 3 through a resistor. This setup causes the LEDs to flash alternately.
6. Power Your Circuit: Connect the 9V battery to the breadboard's power rails. You should see the LED(s) start flashing. You can experiment with the flash rate by changing the values of R2 and C1.

Why This Project?

This project not only reinforces your understanding of ICs but also introduces you to practical skills like breadboarding and circuit design. It's an excellent first step into the world of electronics, showing how components work together to create functional devices.

Conclusion

Integrated Circuits are at the heart of modern electronics, making understanding them fundamental for anyone interested in technology. By starting with a simple project like the LED flasher circuit, you're taking your first step into a broader world of electronic design and innovation. The journey from beginner to expert is filled with exciting projects and learning opportunities, so grab your components, and let's start building!
